Infinity
INFINITY® ESOPHAGEAL DILATION SYSTEM

Rethink Dilation

SPECIFICATIONS
CONTOURED TO THE
PHYSIOLOGY OF THE UES

Intelligent shape and
unrivaled size range

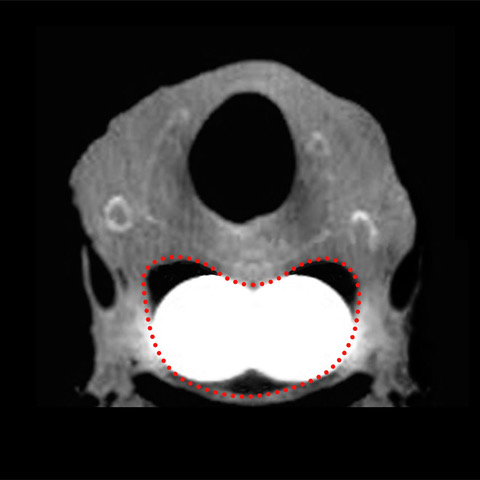

Contemporary research has confirmed that the upper esophageal sphincter is not round. Conventional devices address less than half of the mean cross section of the UES1,2.

Infinity® Esophageal Dilation System is designed for the treatment of swallowing impairment caused by upper esophageal sphincter dysfunction. Simple transnasal system with unrivaled size range.

Infinity® is contoured to the specific physiology of the upper esophageal sphincter, providing nearly double the lateral inflation dimension of conventional devices.

Available exclusively from Bryan Medical.

DOWNLOAD
SPECIFICATIONS

INSTRUCTIONS

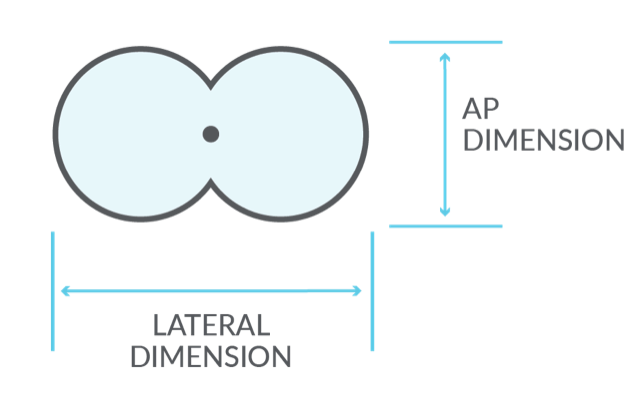

INFINITY® SPECIFICATIONS

Catheter length is 110 cm

PRODUCT
NUMBER		 INFLATION
PRESSURE		 INFLATED
BALLOON
LATERAL DIMENSION		 INFLATED
BALLOON
AP DIMENSION		 INFLATED
BALLOON
LENGTH
INFINITY 1000- THE FARWELL INF1023 5 atm 23 mm 11.5 mm 55 mm
INFINITY 3000- THE MERATI INF3032 4 atm 32 mm 16 mm 55 mm
INFINITY 5000- THE POSTMA INF5038 4 atm 38 mm 19 mm 55 mm
DISPOSABLE INFLATION DEVICE QL6015 - - - -

1 Three-dimensional Analysis of the Human Pharyngoesophageal Sphincter, The Laryngoscope, The American Laryngological, Rhinological and Otological Society, Inc. (2019) Derrick R. Randall, MD, MSc; Daniel J. Cates, MD; E. Brandon Strong; Peter C. Belafsky, MD, PhD, MPH

2 Geometric Morphometric Shape Analysis in an Ovine Model Confirms That the Upper Esophageal Sphincter is Not Round The Laryngoscope, The American Laryngological, Rhinological and Otological Society, Inc. (2012) Daniel J. Cates, MD; Emily K. Plowman, PhD; Omid Mehdizadeh, MD; Kaicheng Yen, MD; Amanda Domer, MS; Michael Gilden; Peter C. Belafsky, MD, MPH, PhD

DOWNLOAD
IFUS

ORDERING

A P.O. or Bryan Medical order form, with quantities and item numbers required. Email orders to sales@bryanmedical.net
